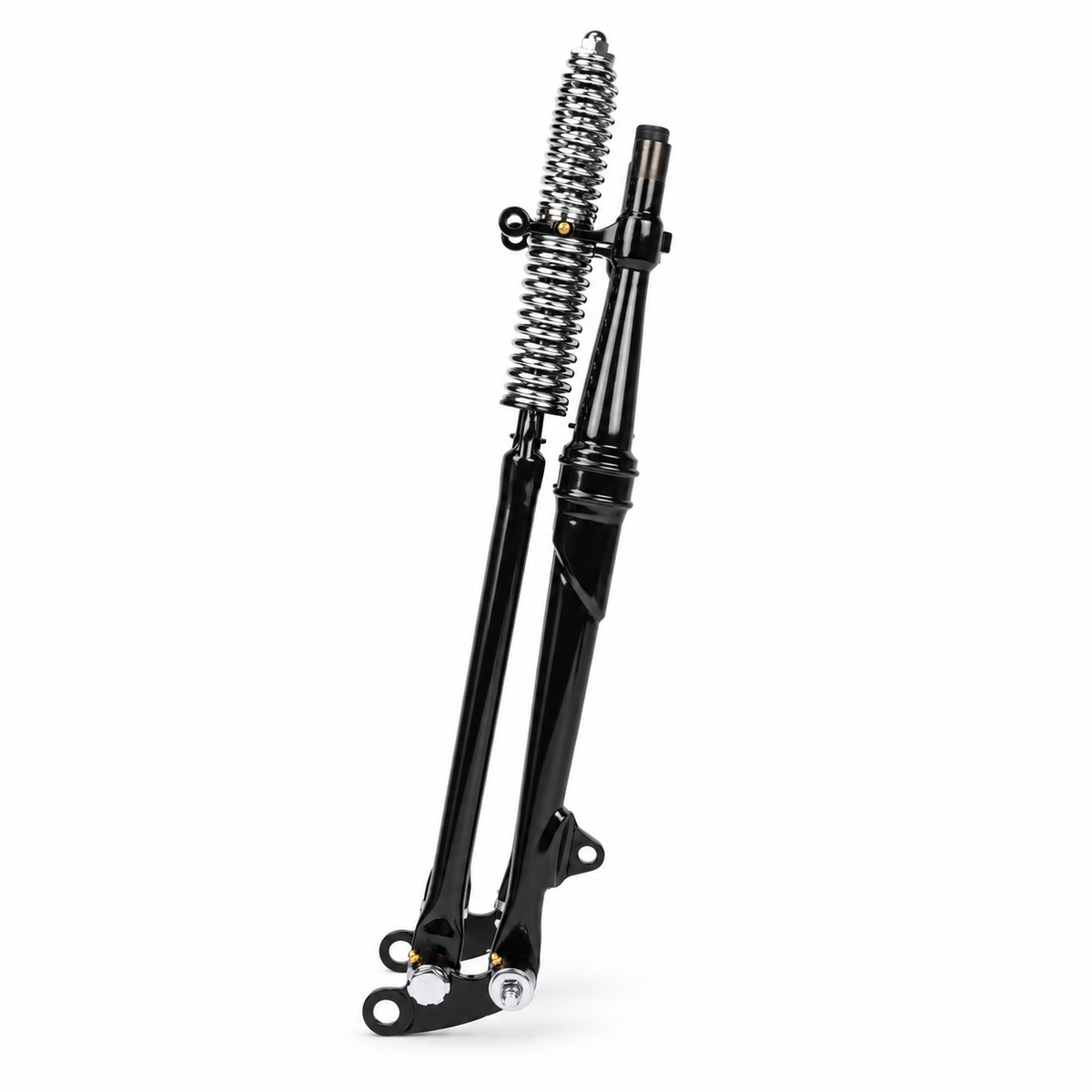

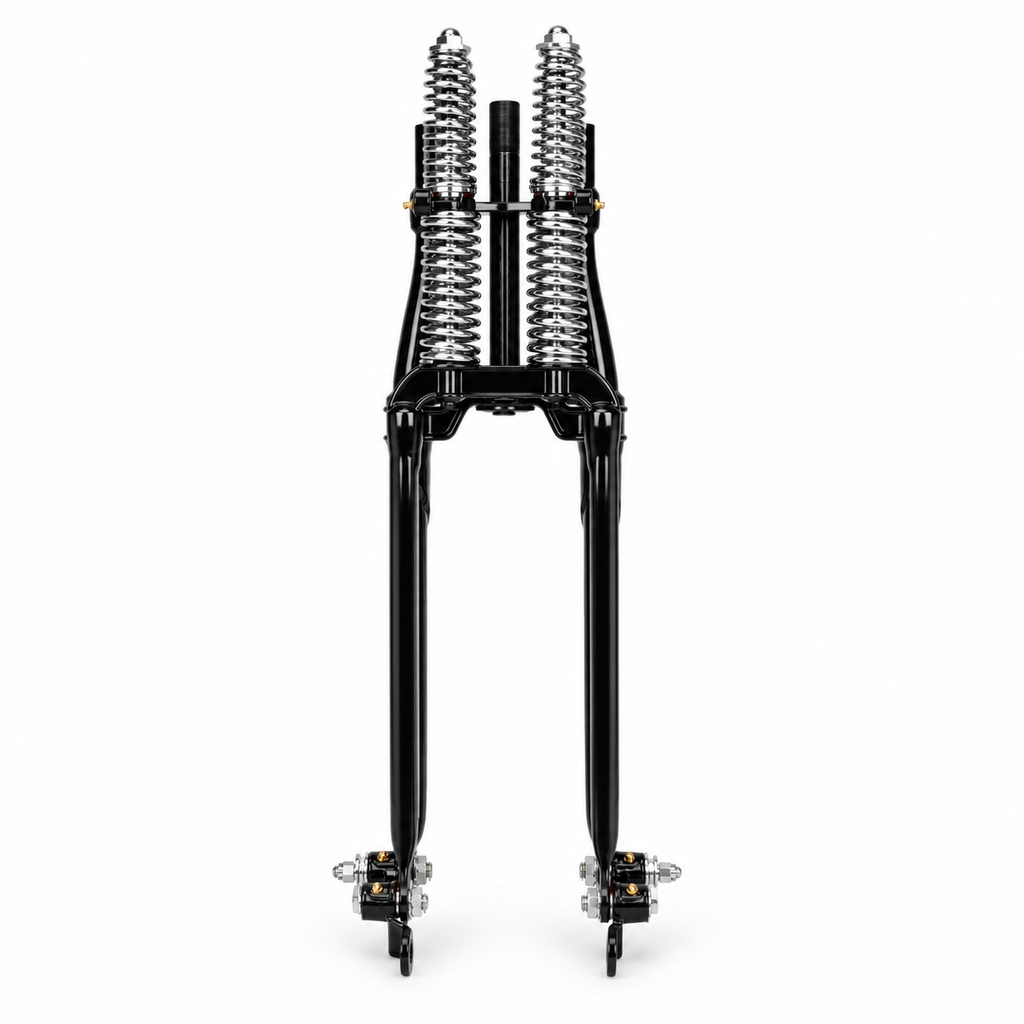

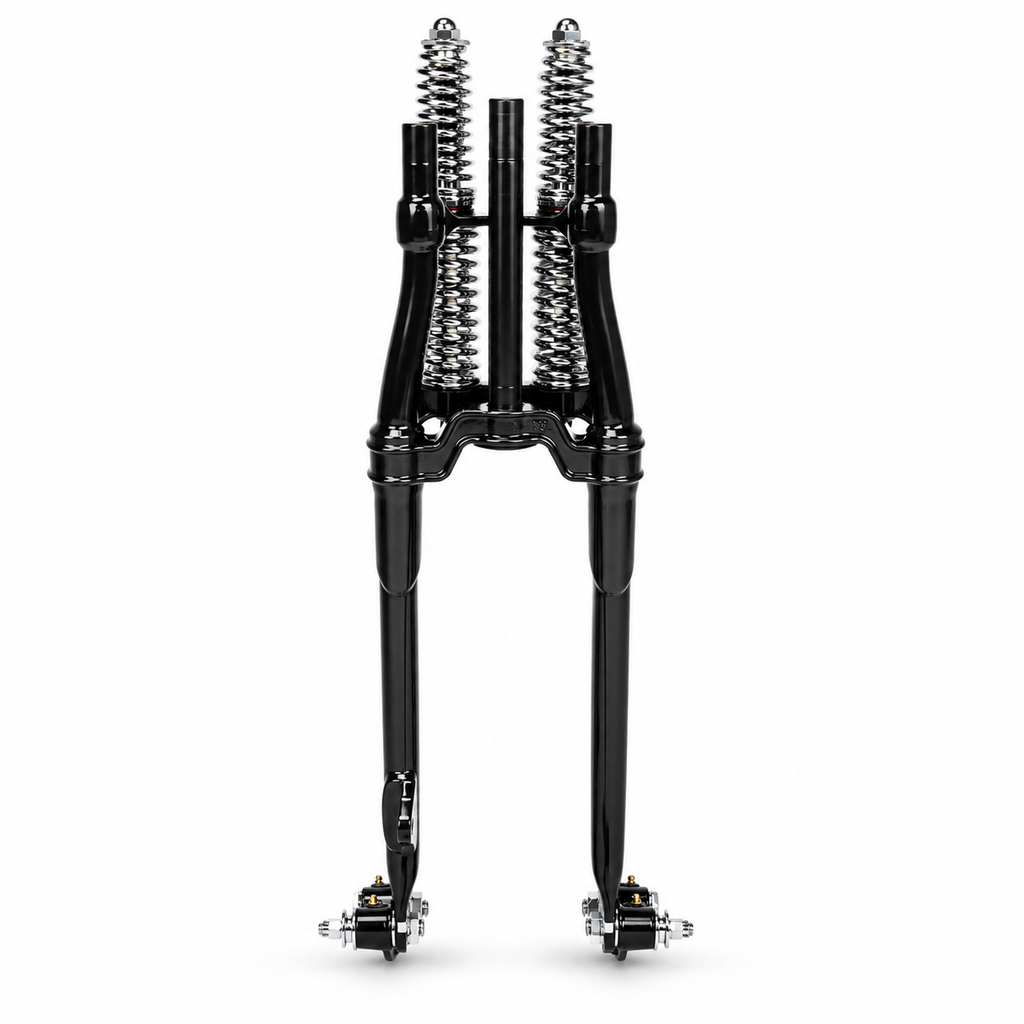

VINTAGE SPRINGER FRONT FORK-28inch-Narrow Black
黑色
$800.00
Skip to product information
VINTAGE SPRINGER FRONT FORK-28inch-Narrow Black
$800.00
Taxes included.
Shipping calculated at checkout.
Details

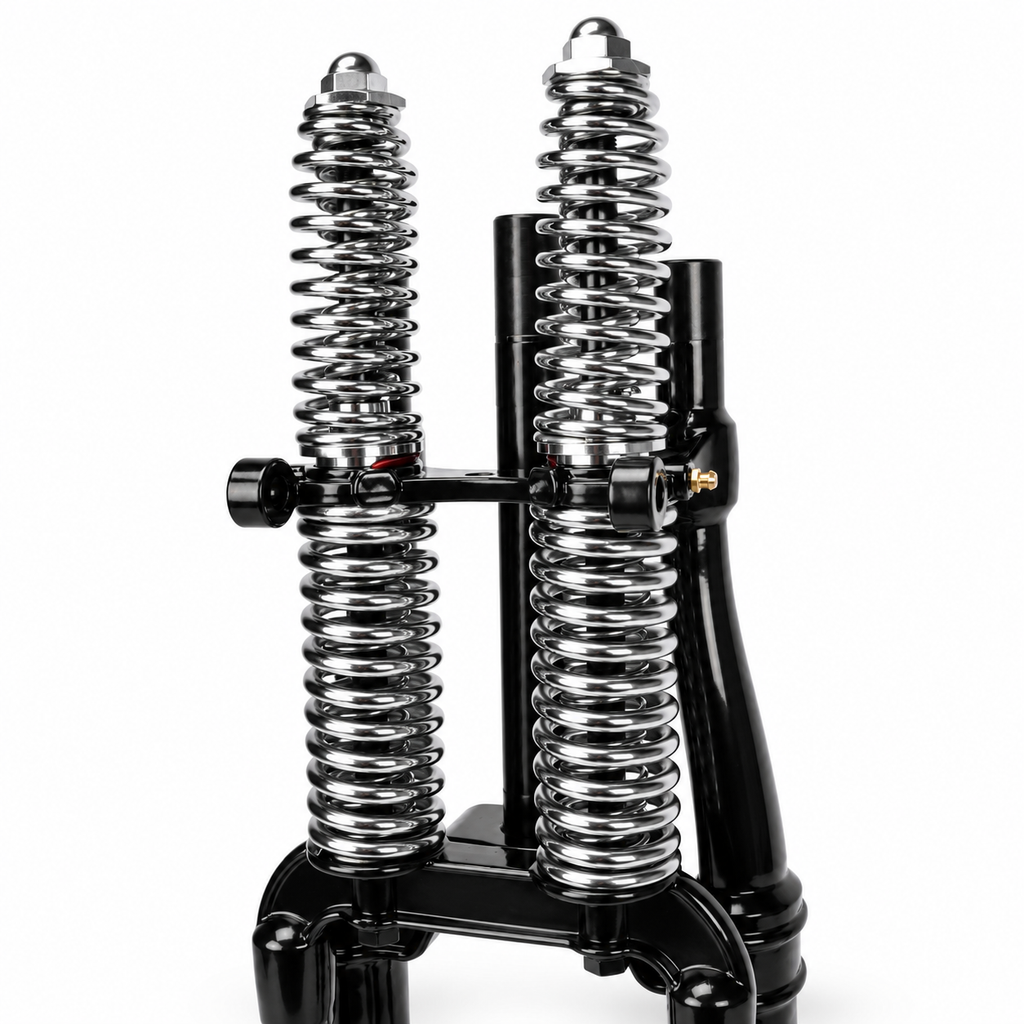

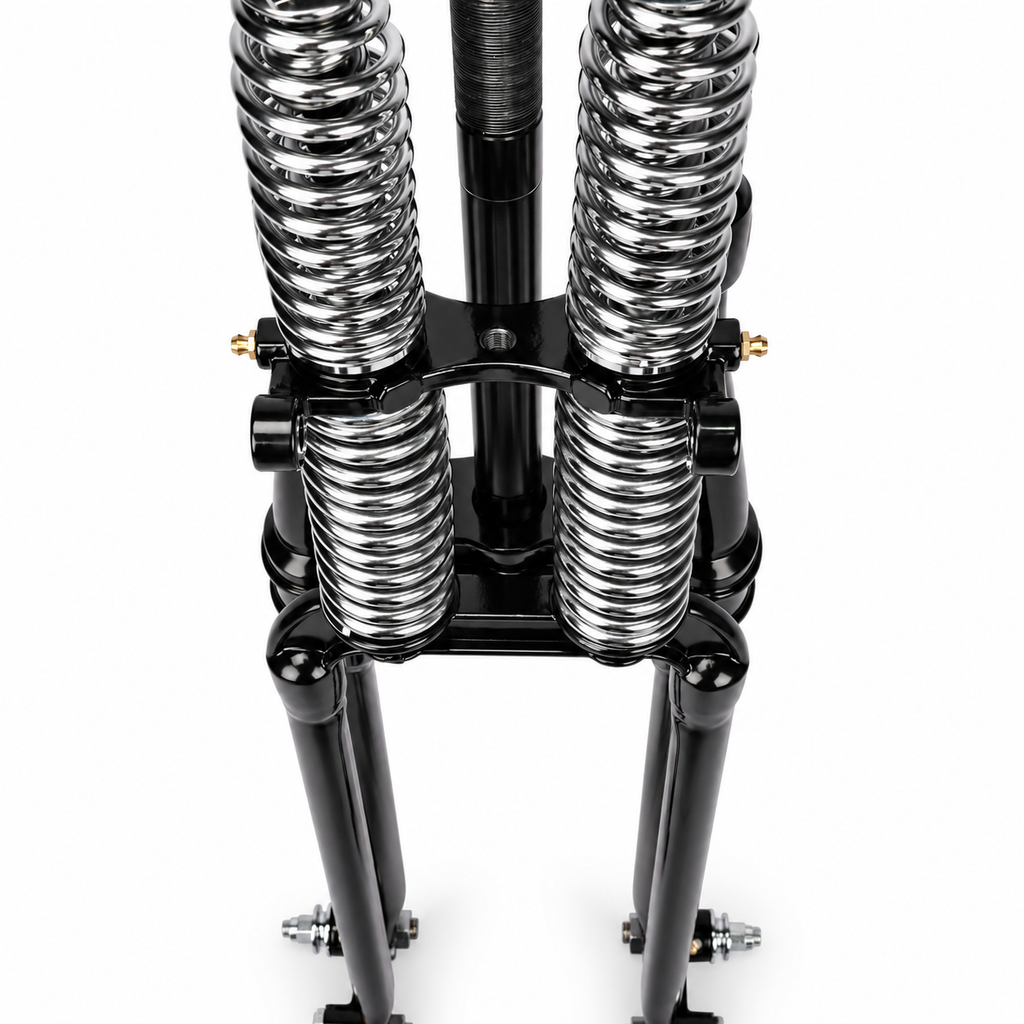

Rigid rear legs, sprung front linkage and exposed dual coil springs recreate the unmistakable pre-war springer silhouette for vintage cruiser, chopper and bobber builds.
1. Steering column: diameter 1 inch; column length 177.2mm; bearing specification L44643;

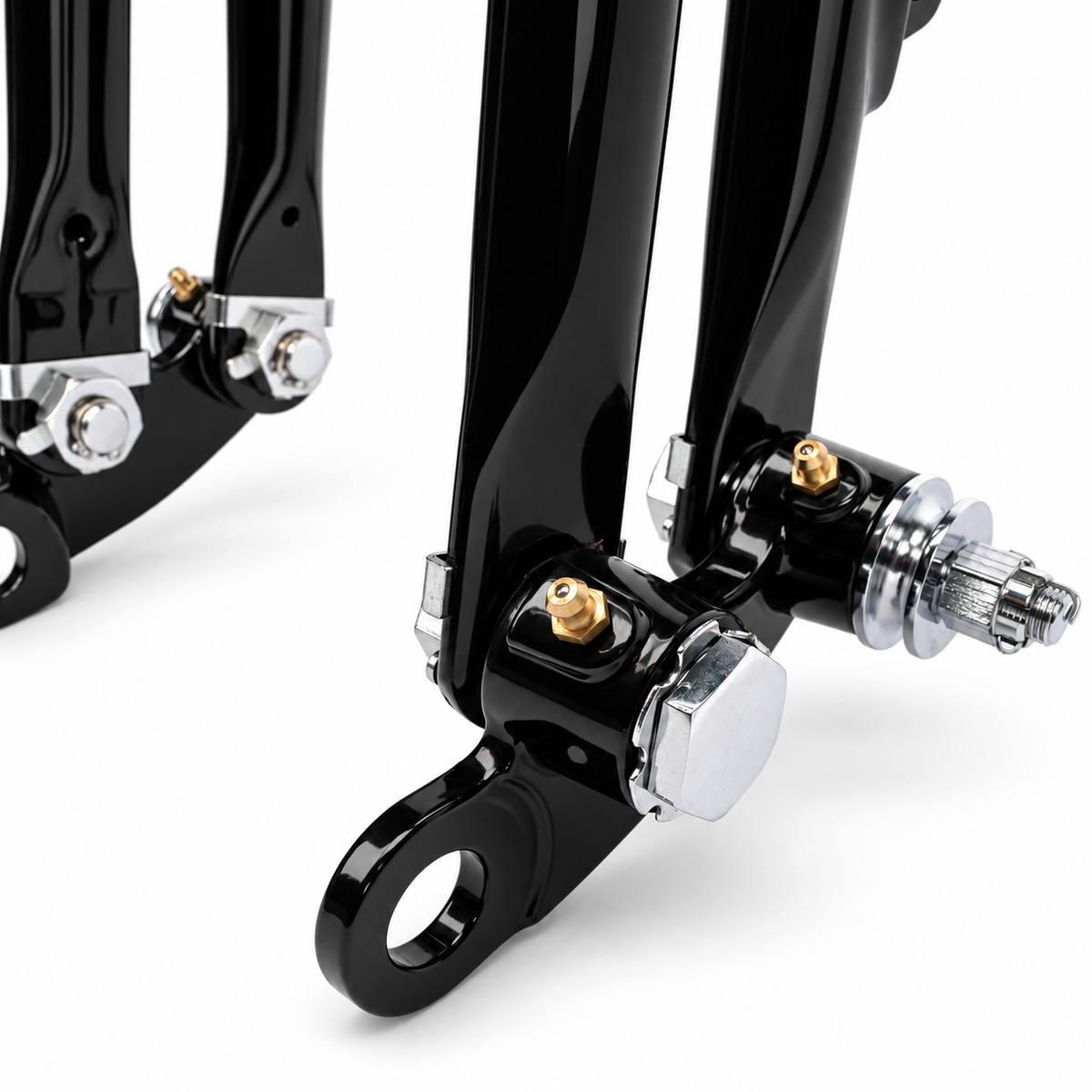

2. Axle specification: axle diameter 3/4 inch;
3. Front fork width: inner width 153.5mm; outer width 282mm; Rocker spacing 153.5mm
4. Load capacity: maximum load 300kg; recommended displacement 250cc-1450cc
5. Spring parameters: material 65Mn; hardness 46-50HRC; non-adjustable preload; no travel
6. Material: seamless steel tube; CNC
7. Basic parameters: with shock absorber; manual TIG welding; salt spray test 24h
8. Offset angle: 0°
2. Axle specification: axle diameter 3/4 inch;
3. Front fork width: inner width 153.5mm; outer width 282mm; Rocker spacing 153.5mm
4. Load capacity: maximum load 300kg; recommended displacement 250cc-1450cc
5. Spring parameters: material 65Mn; hardness 46-50HRC; non-adjustable preload; no travel
6. Material: seamless steel tube; CNC
7. Basic parameters: with shock absorber; manual TIG welding; salt spray test 24h
8. Offset angle: 0°
